Product

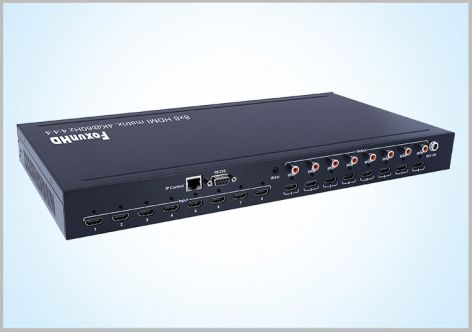

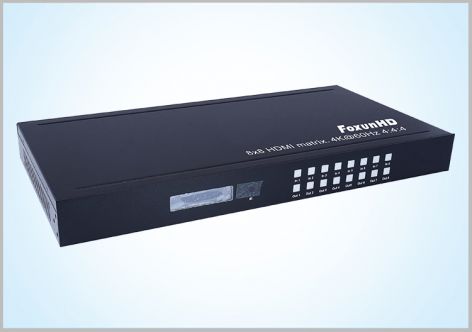

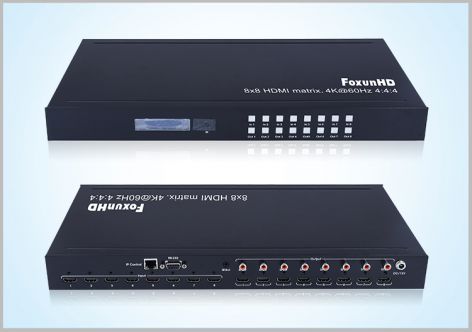

FX-MX11plus
Feature
· HDMI 2.0 version (Support 4K@60Hz YUV4:4:4).
· Support 3D
· Bandwidth upto 18Gbps
· HDCP 2.2 input,HDCP2.2 output
· HDCP 1.4 input,HDCP1.4 output
l Support HDR10

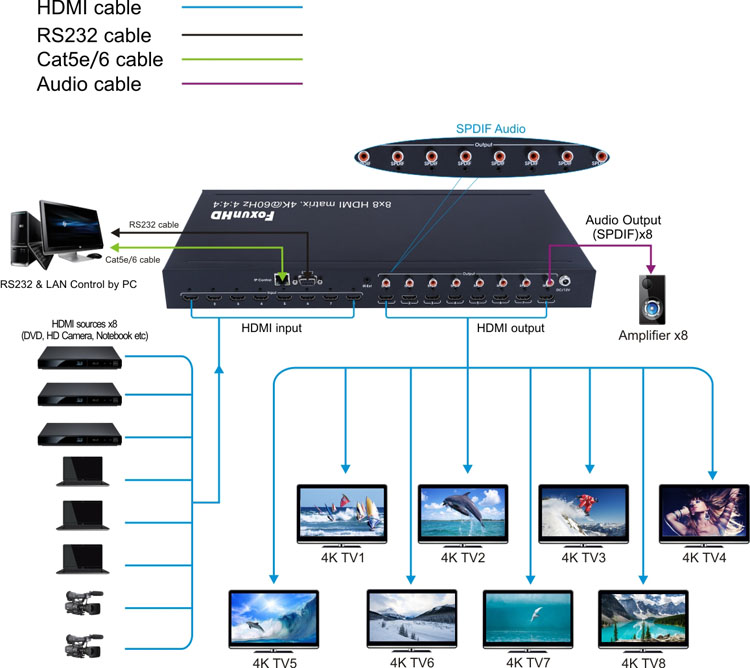

l 8xHDMI Input, 8xHDMI output with 8xSPDIF Audio
l Any one of the 8 Ultra HD sources to any one of the 8 Ultra HD displays
l Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
l Support Dolby True HD and DTS-HD master audio
l 1U rack design, easy installment
l Dimension (L×W×H):440x220x44.5mm
l Net Weight:2.8kg.
2.SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Storage Temperature |
-40°F to 158°F (-40°C to 70°C) |
|
Operating Humidity Range |
5 to 90 % RH (no condensation) |
|
Video Input Connectors |
8xHDMI Type A, 19-pin, female |
|
Video Output Connectors |
8xHDMI Type A, 19-pin, female |
|
IR Ext port |
1x3.5mm stereo jack |
|
Resolution |
480p@60hz,576P@50hz,720P@60hz,
1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,
4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
|
RS-232 serial port |
DB9, female |
|
Ethernet port (IP control) |
RJ45, female |
|
Rack-Mountable |
Rack ears included |
|
Power Consumption |
19wtts |
|
Dimensions(LxWxH) |
440 x 220 x 44.5 mm |
|
2.8kg |
