EF03 60KM Ultra HD 4K HDMI Extender Over Fiber
FX-EF03
1 Feature
l Transmit from 1m to 60KM.
l Support resolution upto Ultra HD 4kx2k @30hz and Full HD 1080p.
l Support bandwidth upto 10.2Gbps.
l Support Single /Multi mode, Single /Duplex fiber (Optional).
l Support HDCP2.2 input, HDCP 1.4 output.
l Support HDCP1.4 input, HDCP1.4 output.
l With Automatic EDID for rapid integration of source and display.
l Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
l Locking power supplies.
l Surface-mountable.
l Power consumption:3watts
l Dimension (L×W×H):96x100x25mm
l Net Weight:475g(Pair) .
2 SPECIFICATIONS
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
Operating Humidity Range |
5 to 90%RH (No Condensation) |
Video Input(Transmitter)
|
1xHDMI Type A, 19-pin, female |
Video Output(Receiver) |
1xHDMI Type A, 19-pin, female |

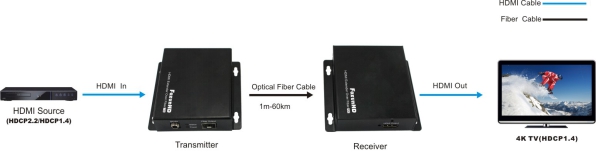

Link(Transmitter/ Receiver) |
1m~60Km single / Multimode single / Duplex fiber optical cable |
Module type required① |
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional) |
Video Format |
4Kx2K@30Hz, 1080P @60Hz, 1080i, 720P, 576P, 480P |
Audio Format |
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
|
HDCP Input |
HDCP 2.2, HDCP 1.4 |
HDCP Output |
HDCP 1.4 |
Power consumption |
Transmitter: 3watts; Receive: 3watts
|
Dimension (L×W×H) |
Transmitter: 96*100*25mm; Receive: 96*100*25mm |
Net Weight |
475g (Pair) |
