EX36/EP36 H.264 HDMI over IP Extender with LED
FX-EX36/EP36
|
Model |
Different |
|
FX-EX36 |
Without POE |
|
FX-EP36 |
With POE |
1 Feature
l Using H.264 compression encoding, support resolution up to 1080p@60hz
l Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
l With IR Remote to choose the source, with LED to show the Group ID
l Comply with TCP/IP protocol, streaming bit rate is up to 15Mbps
l Support LPCM audio format
l Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
l Wide-band IR pass through to control the source (38khz to 56khz)

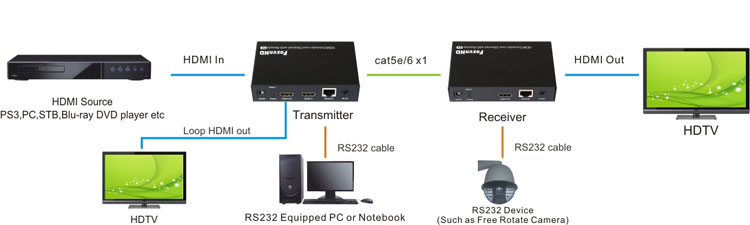

l By pass 2 way UART/RS232 (Up to 115200), use remote controller to select 8 group Baud rate

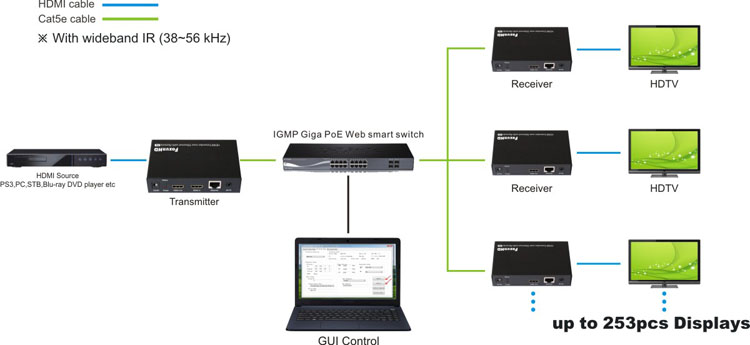

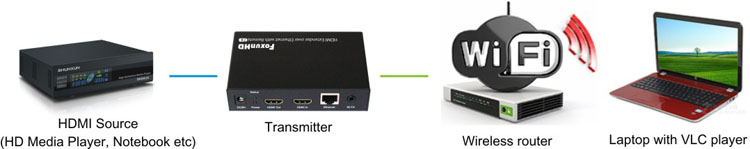

l Support one to one, one to many, many to one, with large cascade
l HDCP Compliant
l Support PC tool control
l DC 5V 1A power supply
2 Specifications
|
Performance |
|
|
Protocol |
H.264 encoder over TCP/IP |
|
Support Video format |
480i/480p/576i/576p/720p/1080i/1080p@60HZ |
|
Support Audio format |
LPCM, Audio sampling rate 48KHZ |
|
Streaming Bit Rate |
15Mbps |
|
HDCP |
Compliant |
|
IR Frequency |
38 -56 KHZ |
|
RS232 Baud rate |
Default 2400bps, total 8 kinds optional |
|
IP setting &Group ID setting |
|
|
Default IP |
TX: 192.168.1.11 ; RX: 192.168.1.12 |
|
Group ID |
Group 00 ~ group 63 |
|
Request for Switch/Router |
Support IGMP, support DHCP |
|
Connectors on Transmitter |
|
|
Input |
1xHDMI Female port |
|
Output |
1x RJ45 output , 1x HDMI looping output |
|
RS232 |
Phoenix RS232 port |
|
IR |
IR TX port (Support 38K-56KHz)
IR Ext port (Support 38KHz) |
|
Connectors on Receiver |
|
|
Input |
1xRJ45 input |
|
Output |
1x HDMI Female port looping output |
|
RS232 |
Phoenix RS232 port |
|
IR |
IR RX port (Support 38K-56KHz)
IR Ext port (Support 38KHz) |
|
Environmental & Power Requirements |
|
|
Operating temperature |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Power supply |
|
