EX37/EP37 4K HDMI+USB KVM Extender over IP / Fiber
FX-EX37
|
Model |
Different |
|
FX-EX37 |
Without POE |
|
FX-EP37 |
With POE |
1 Feature
l 4k UHD HDMI over IP extension

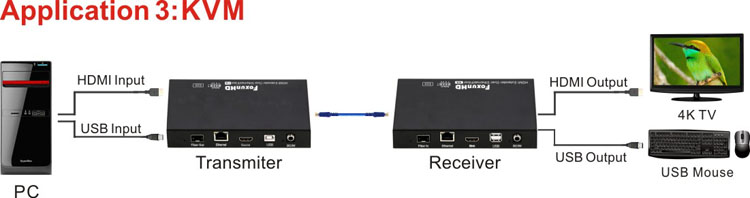

l USB 2.0 over IP extension
l RS232 bi-directional extension and RS232 control
l 4 bits Switch for 16 stream channel selection
l Support Dolby True HD, DTS-HD Master Audio
l Support two way wide Band IR extension(38khz-56khz)
l Transmit over single Cat5e/6 cable up to 120m
l Transmitter over Fiber Optical cable up to 60km(Single Mode)
l Networking environment under Giga Enthernet switch and Cat5e cable

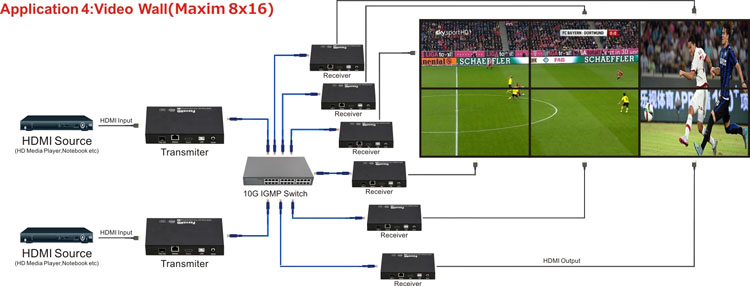

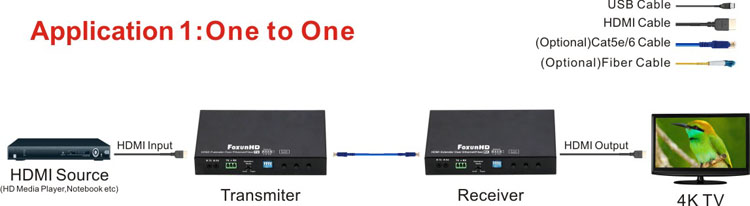

l Point to Point extension,Unicast, Multicast and Video wall system(max 8x16)
l Output video rotation
l Output video video partial enlargement
l HDCP1.4 compliant
2 SPECIFICATIONS
Performance
&l
|
|
|
Protocol |
TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4 |
|
|
|
|
Support Video format |
4K@30HZ, 1080P/1080i/720P/576P/576i/480P/480i |
|
|
|
|
Support Audio format |
Stereo 192Kbps |
|
|
|
|
HDCP |
Compliant |
|
|
|
|
IR Frequency |
38 -56 KHZ |
|
|
|
|
RS232 Baud rate |
Default 115200bps, total 8 kinds optional |
|
|
|
|
IP setting &Group ID setting |
|
|
|
|
|
Default IP |
Automatic allocation |
|
|
|
|
Group ID |
Group 00 ~ group 16 |
|
|
|
|
Request for Switch/Router |
Support IGMP, support DHCP |
|
|
|
|
Connectors on Transmitter |
|
|
|
|
|
Input |
1xHDMI Female port, 1xUSB B type |
|
|
|
|
Output |
1x RJ45 output, 1x Fiber output |
|
|
|
|
RS232 |
Phoenix RS232 port |
|
|
|
|
IR |
1x IR TX port; 1x IR RX port |
|
|
|
|
Support 38K-56KHz |
||
|
|
|
|
||
|
|
|
Connectors on Receiver |
|
|
|
|
|
Input |
1xRJ45 input, 1x Fiber input |
|
|
|
|
Output |
1x HDMI Female port, 2x USB A type |
|
|
|
|
RS232 |
Phoenix RS232 port |
|
|
|
|
IR |
1x IR TX port; 1x IR RX port |
|
