Product

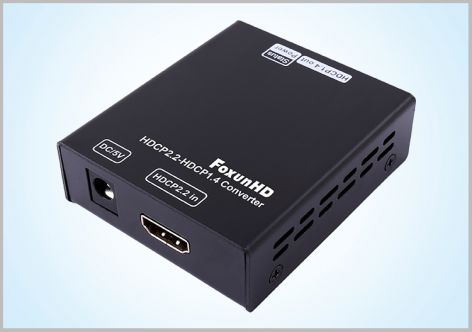

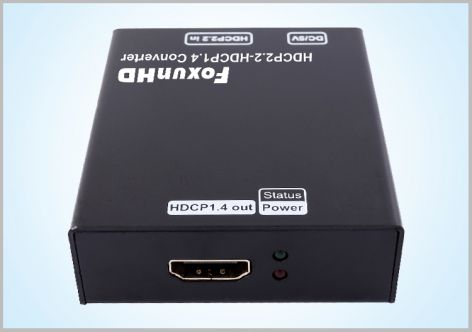

HDCP01 HDCP2.2 to HDCP1.4 Converter
FX-HDCP01
1 Feature
l HDMI IN, HDMI OUT, compliant HDMI 1.4B.
l Converter HDCP 2.2 to HDCP1.4.
l Support 4Kx2K@60HZ, YUV 4:2:0.
l Support audio format Dolby, DTS, LPCM.
l Support 3D, CEC.
l Support 5V 1A.
l Power consumption:1.5watts
l Dimension (L×W×H):70.2x60.2x21.1mm
l Net Weight:120g
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉)
|
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
HDMI input |
|
|
HDMI output |
|
|
Video Format Supported |
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K
3D video support |
|
video Format |
4Kx2K@60Hz, YUV 4:2:0 |
|
HDMI input |
1xHDMI (Standard Type A connector)
|
|
HDMI output |
1xHDMI (Standard Type A connector)
|
|
Support Video Color Format |
xv-YCC/deep color 36bit |
|
Support Audio Format |
DTS-HD Master Audio, Dolby true-HD. LPCM |
|
Power consumption |
1.5 watts |
|
Dimension (L×W×H) |
70.2*60.2*21.1mm
|
|
Net Weight |
120g(pcs) |
