VW02 2X2 1080P HD Video wall Controller
Loading...
    • VW02 2X2 1080P HD Video wall Controller
    • VW02 2X2 1080P HD Video wall Controller
    • VW02 2X2 1080P HD Video wall Controller

    VW02 2X2 1080P HD Video wall Controller

    Item No.: FX-VW02
    Series: Product
    Category: HDMI splitter

    Consult

      • VW02 2X2 1080P HD Video wall Controller
      • VW02 2X2 1080P HD Video wall Controller
      • VW02 2X2 1080P HD Video wall Controller
      Products Details Wiring diagram Manual download

      FX-VW02

      1 Feature

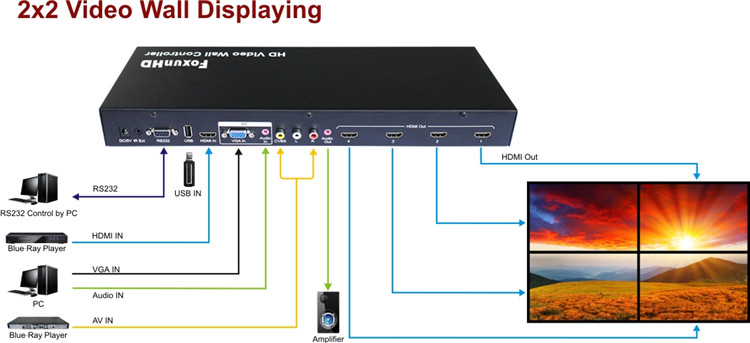

      l Split a single Hi-Definition source to four displays:Create a 2x2 video wall from any Hi-Definition source to four screens

      l Support HDMIVGACVBSUSB input

      l Output:HDMI

      l Resolution up to 1080p Full HD

      l Support IR,RS232 control

      l Support 180 degree rotation

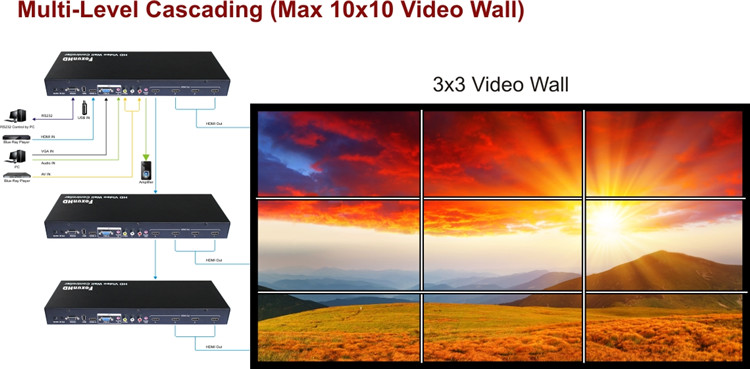

      l Support multi-level cascading to create Max 10x10 Video wall

      l SizeL483XW270XH44.5mm


      2 SPECIFICATIONS

      Material

      metal

      Operating Temperature Range

      -5 to +65℃(+23 to +149℉)

      Operating Humidity Range

      5 to 90%RH (No Condensation)

      Input Video Signal

      HDMI(480I ~ 1080P)VGA640 x480/85 HZ~ 1920x 1200/60HZ)、CVBSUSBUSB2.0

      Output Video Signal

      HDMI

      Operating Control

      IRRS232

      Power supply

      DC 220V

      Power consumption

      Less than 15W

      Dimension

      L483XW270XH44.5mm
