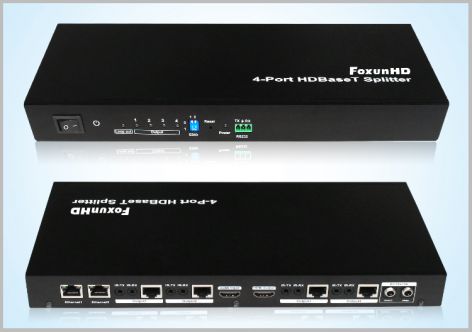

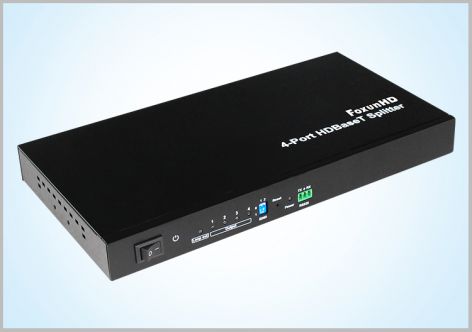

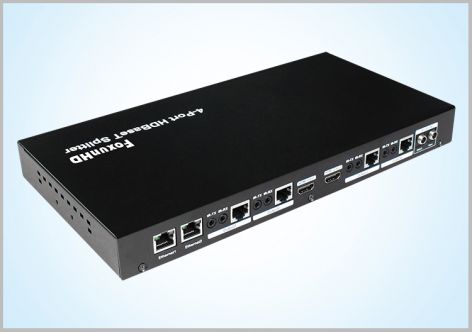

SPH04/02/08 100m/70m 1x4HDBaseTSplitter
FX-SPH04-100/70
|
Model No. |
Product Name |
Distance（single cat5e/6 cable） |
Ethernet |
|
FX-SPH02-70 |
70米（1080P），40米（4K） |
X |
|
|
FX-SPH04-70 |
|||
|
FX-SPH08-70 |
|||
|
FX-SPH02-100 |
100米（1080P），70米（4K） |
√ |
|
|
FX-SPH04-100 |
|||
|
FX-SPH08-100 |
1 Feature
l Incorporates HDBaseT technology
l Distributes 1 Ultra HD HDMI signal to 4 identical HDBaseT outputs,with 1xloop HDMI output.
l Transmitter Distance up to 100m under 1080p,70m under 4k
l HDCP2.2/1.4 compliant
l Support resolution to 4k@60Hz,YUV4:2:0,VESA resolution up to 1920x1200
l Support Dolby True-HD / DTS Master Audio
l With wide-band Bi-Directional IR control(38-56kHz)(IR extension from sender to Receiver or from Receiver to sender)
l HDBaseT output 1 supports RS232 and Ethernet pass trough
l Support CEC,3D
l Support POC(Receover power by HDBaseT Splitter)
l DC12V Power supply.
l Power consumption:15watts
l Dimension (L×W×H):305x165.2x39.8mm
l Net Weight:1425g .
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Video Bandwidth |
10.2Gbps |
|
Support Video Format |
Resolutions up to 4k@60Hz,YUV4:2:0
VESA resolution |
|
Connectors |
1xHDMI input
1xHDMI loop output
4xRJ45output
2xPower DC receptacle
1xPhoenix RS232 port
2xEnthernet port |
|
Transmission Distance |
100m (1080P), 70m(4K)
|
|
Power supply |
110-240V/DC12V 2A Power supply |
|
Power consumption |
15Watts |
|
Dimension (L×W×H) |
305x165.2x39.8mm |
|
Net Weight |
1425g |
CONNECT AND OPERATE
1) Connect the HDMI input source into HDBaseT splitter.
2) Connect HDBaseT splitter and Receiver over Cat6 cable,The Cat6 cable must follow EIA-TIA 568b standards
3) Connect the HDMI output of Receiver to the HDMI Display
4) Connect 4pcs IR TX cables to IR-TX sockets on the splitter and connect 4pcs IR RX cables to the IR-RX sockets on the splitter.
5) Connect IR-RX cable to IR-In port of Receiver,connect IR TX cable in to IR-Out port of Receiver
6) Power up all units, the splitter,receiver,source and displays
7) To get on the ethernet,pls connect as below steps:
① Connect ethernet cable into ethernet port on HDBaseT splitter
② Connect ethernet cable with TV and ethernet extender receiver.
Note：A.The ethernet function is designed for ethernet compatible receiver units only.
B.Only output1 with etnernet function
8) Copy EDID function
Copy the EDID of the sink which connected the loop HDMI.
