Product
FX-MX09
1.Features

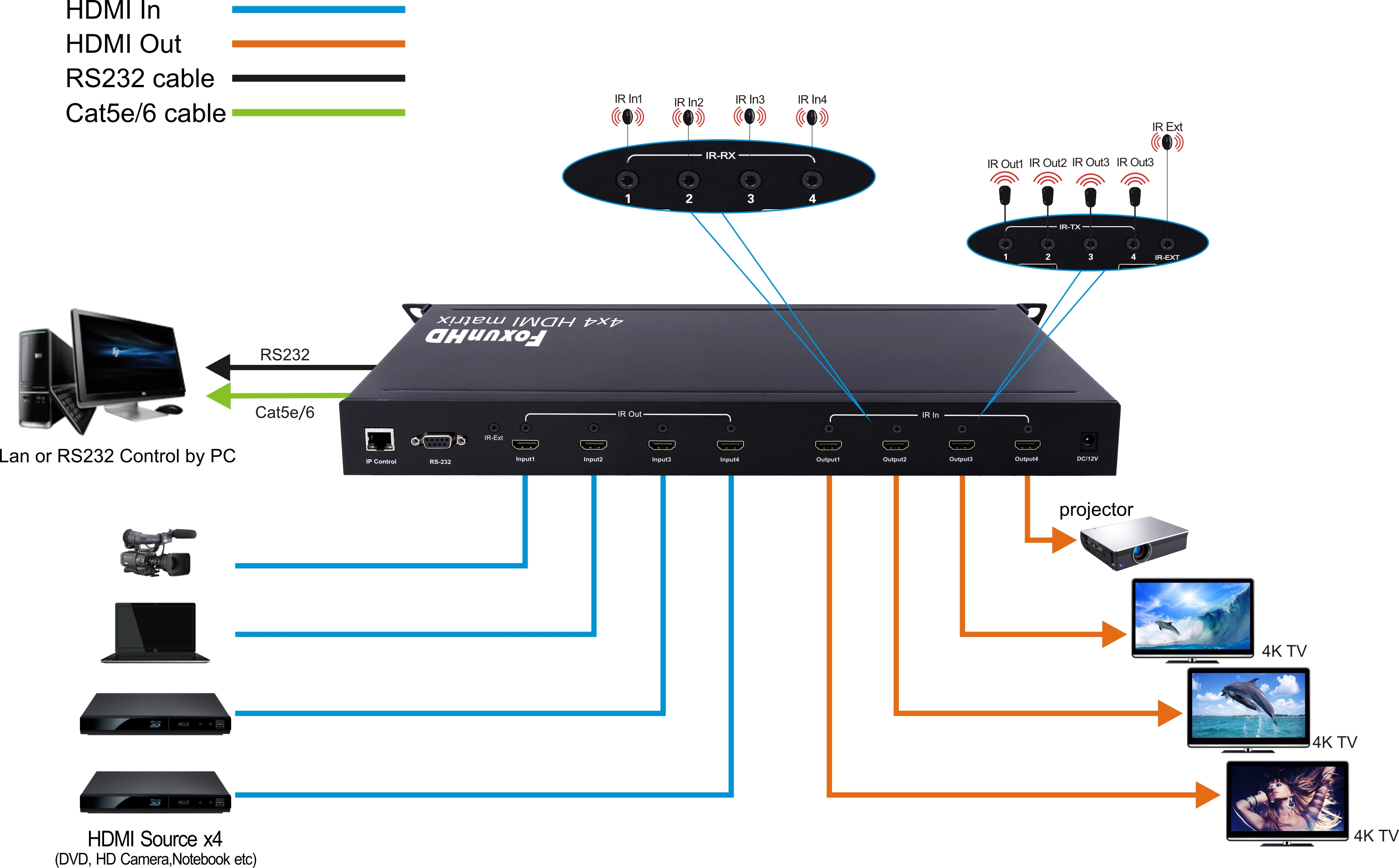

l 4xHDMI input, 4xHDMI output, any one of the 4 sources to any one of the 4 Displays.
l HDMI2.0 Version (4K@60HZ YUV4:4:4)
l Data transmission bandwidth up to 18 GBPS
l Support HDR.
l Support HDCP2.2 input, HDCP2.2 output
l Support Panel button, Local IR, IR routing, RS232 control and Web GUI Control
l Support EDID management functions
l Support Dolby TrueHD and DTS-HD Matter audio
l 1U rack design, easy installment
l Unit size: L438XW220XH44 mm.
2.Specifications
|
Bandwidth |
18 Gbps |
|
Resolution |
480p,576P@50hz,720P@60hz,
1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,
4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
|
Video Input Connectors |
4xHDMI Type A, 19-pin, female |
|
Video Output Connectors |
4xHDMI Type A, 19-pin, female |
|
RS-232 serial port |
DB-9, female |
|
Ethernet port (IP control) |
RJ-45, female |
|
IR Input ports |
5x3.5mm stereo jack |
|
IR Output ports |
4x3.5mm stereo jack |
|
Rack-Mountable |
Rack ears included |
|
Dimensions(WxHxD) |
L438XW220XH44 mm |
|
Net Weight |
2.68 kg |
|
Operating Temperature |
-4°F to 140°F (-20°C to 60°C) |
|
Storage Temperature |
-40°F to 158°F (-40°C to 70°C) |
|
Power consumption |
12W(Max) |
