18Gbps 4x1 HDMI 2.0 Switch SW41
Loading...
    • 18Gbps 4x1 HDMI 2.0 Switch SW41
    • 18Gbps 4x1 HDMI 2.0 Switch SW41
    • 18Gbps 4x1 HDMI 2.0 Switch SW41
    • 18Gbps 4x1 HDMI 2.0 Switch SW41

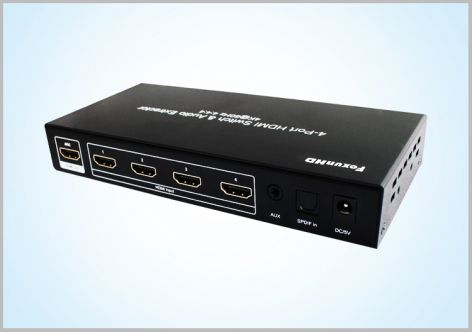

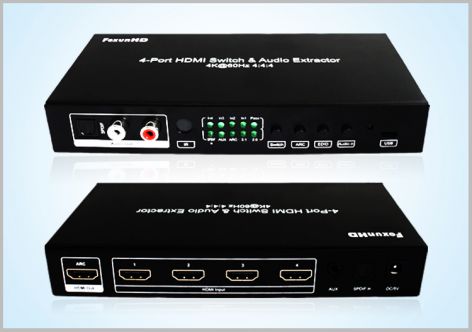

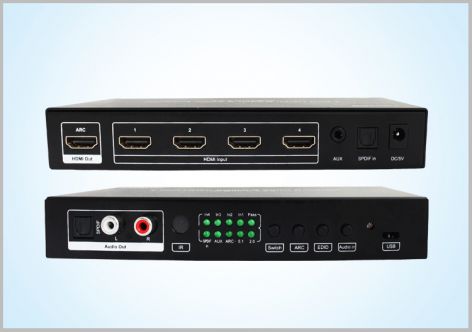

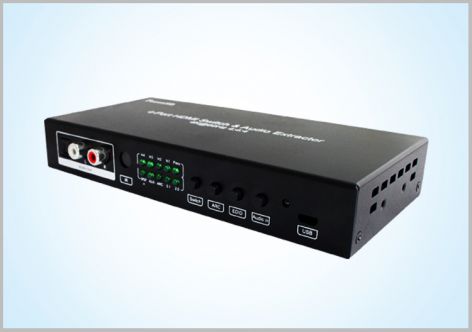

    18Gbps 4x1 HDMI 2.0 Switch SW41

    Item No.: SW41
    Series: Product
    Category: HDMI splitter

    Consult

      • 18Gbps 4x1 HDMI 2.0 Switch SW41
      • 18Gbps 4x1 HDMI 2.0 Switch SW41
      • 18Gbps 4x1 HDMI 2.0 Switch SW41
      • 18Gbps 4x1 HDMI 2.0 Switch SW41
      Products Details Wiring diagram Manual download
      FX-SW41

      1. Feature

      l HDMI2.0 version(Support4K@60Hz YUV 4:4:4)

      l Bandwidth upto 18Gbps

      l HDCP2.2,CEC,ARC

      l Support HDR10

      l Support 4xHDMI in,IR or switch button to choose source out

      l Support output with audio extraction,RCA 2.0 SPDIF 5.1

      l Support audio mixing,Aux 2.0,SPDIF 5.1 (by pass mode)

      l Support Dolby True HD and DTS-HD master audio

      l Power supply:DC 5V

      l Dimension (L×W×H):178x84.1x28.1mm


      2.SPECIFICATIONS

      Operating Temperature Range

      -5 to +40℃(+23 to +104℉)

      Operating Humidity Range

      5 to 90%RH (No Condensation)

      HDCP version

      HDCP2.2 HDCP1.4(Auto choose depand TV version)

      Support Audio format

      Analog audio 2.0,SPDIF 5.1,Audio extraction

      Support Video format

      DTV/HDTV:4kx2k@60Hz YUV4:4:4

      /1080P/1080i/720P/576P/576i/480P/480i

      Control ways

      Switch button and remoter control

      Support Audio Format

      Dolby true-HD etc and DTS-HD Master Audio(HDMI out)

      Data transfer speed rate

      6.75Gbps

      Power supply

      DC 5V

      Transmission Distance

      1080P 20m,4K@30Hz 10m,4K@60Hz under HDR can support 3m

      Dimension (L×W×H)

      178x84.1x28.1mm

      Note: Specifications are subject to change without notice. Mass and dimensions are approximate.
