SDI-401 4x1 SDI Switch &Repeater
l Switch 4 SDI inputs to 1 SDI Monitor
l Support SDI Standard :SD-SDI,HD-SDI, 3G-SDI
l Single unit can transmit up to 120m/390ft (Beldon 1694A)

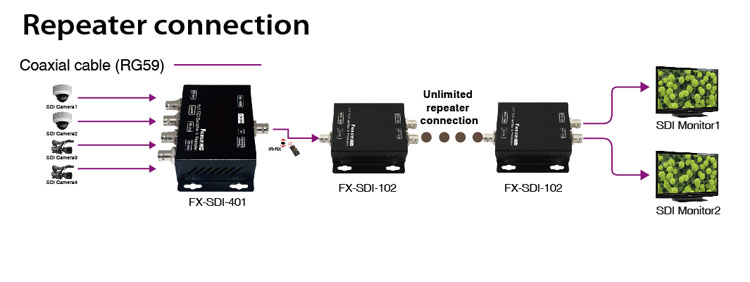

l Re-clocking function capability---unlimited repeater connection
l With mounting ears
l Power consumption:2watts
l Dimension (L×W×H):116x95x30mm
2 SPECIFICATIONS
|
Re-clocking Function |
Yes |
|
SDI Standards |
SD-SDI, HD-SDI,3G-SDI |
|
Supported Protocols |
SMPTE 259M
SMPTE 292M
SMPTE 424M |
|
Data Rates |
270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI) |
|
Video Support |
480i@60hz, 720p@50/59.94/60hz, 1080i@50/59.94/60hz, 1080p@23.98/24/25/29.97/30/50/59.94/60hz |
|
SDI Signal Type |
SMPTE-292M, SMPTE-259M, SMPTE-424M |
|
Output Impedance |
75 ohms |
|
Cable Equalization |
HD-SDI up to 120m
SD-SDI up to 200m
Unlimited repeater connection |
|
Audio Sampling rate |
48Khz |
|
Impedance |
75 ohms |
|
Input |
4x BNC [SDI] |
|
Output |
1x BNC [SDI] |
|
Power Adapter |
5V 1A DC |
|
Power Consumption |
2W |
|
Dimension(LxWxH) |
116x95x30mm |
|
Operating Temperature |
0°C ~ 65°C / 32°F ~ 149°F |
|
Storage Temperature |
-20°C ~ 65°C / -4°F ~ 149°F |
|
Relative Humidity |
20~90% RH (no condensation) |
|
Housing Material |
Metal case |
Note: Specifications are subject to change without notice. Mass and dimensions are approximate.
CONNECT AND OPERATE

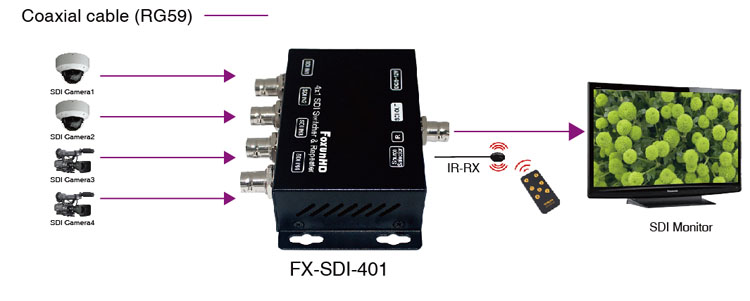

1. Connect 4xSDI device equipped with SDI output to 4x1 SDI switch inputs.
2. Connect devices equipped with SDI input (e.g monitors or video processors) to the 4x1 SDI switch output.
3. Plug power adapter into power jack.
Note:

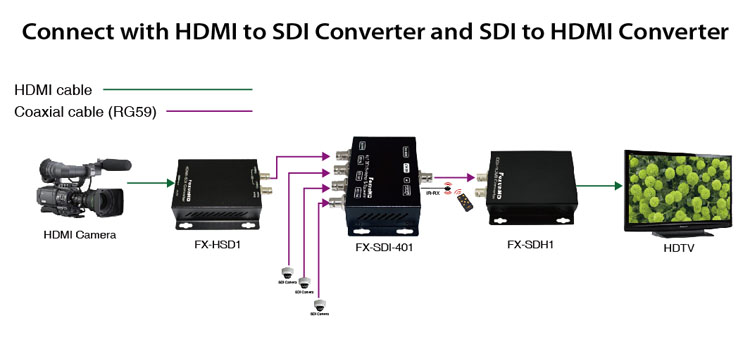

1) .This item can also work with our HDMI to SDI converter and SDI to HDMI converter, 1x2 SDI splitter.
2) We suggest you use cable with Belden 1694A.
3) The distance depends on the quality of the SDI signal from the HD Camera source and also the coax cable & connector.
