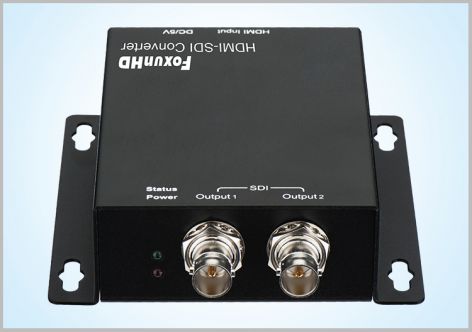

HSD1 HSD1 HDMI to SDI Converter,with 2 SDI outputs
FX-HSD1
|
Model |
Different |
|
FX-HSD1B |
With Broadcast |
|
FX-HSD1 |
Without Broadcast |
1 Feature
l lConvert HDMI to SD/HD/3G-SDI.
l lDistributes 1 HDMI source to 2 SD/HD/3G-SDI output simultaneously.
l lSupport HDMI input resolutions:
1080p (50/60/59.94/30/29.97/24/23.98Hz)
1080i (60/59.94Hz), 720p (60/59.94/50Hz), 480i (60/59.94HZ)
l Work with SDI to HDMI converter to cascade many layers.
l lSupport transmission distance up to 100m over RG59 cable.
l lWith mounting ears.
l Support 5V 1A.
l Dimension (L×W×H):95x95x29mm
l Net Weight:245g
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉)
|
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Resolutions Supported |
1080p (50/60/59.94/30/29.97/24/23.98Hz)
1080i (60/59.94Hz), 720p (60/59.94/50Hz), 480i (60/59.94HZ) |
|
SDI Standard |
3G-SDI/HD-SDI/SDI |
|
HDMI input |
1xHDMI (Standard Type A connector)
|
|
output |
2xSDI(BNC) |
|
Power consumption |
2.5 watts |
|
Dimension (L×W×H) |
95x95x29mm
|
|
Net Weight |
245g(pcs) |
