MX42 4x2 HDMI Matrix, Support 4kx2k,ARC
FX-MX42
1 Feature

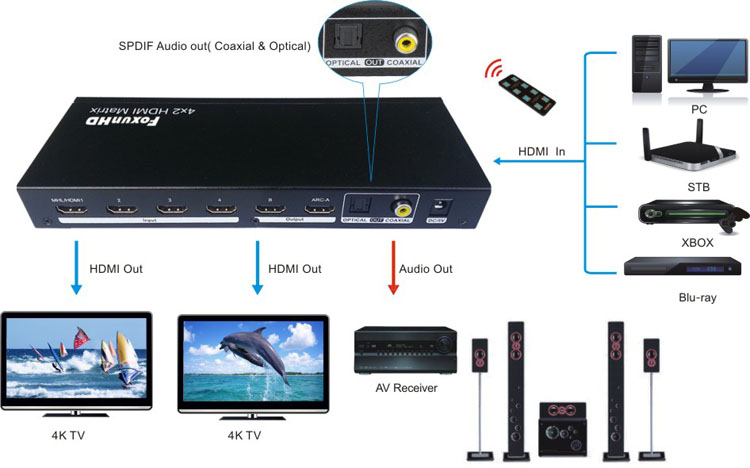

l Routes four Ultra Hi-Def sources to two Ultra HD displays
l Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD
l Supports 36-bit Deep Color
l Supports PCM ,Dolby Digital™, and DTS Digital Surround™ ®
l Support SPDIF(Coaxial and optical)signal output and HDMI Output A singal is simultaneous
l HDMI input/output cables may be up to 10/15 meters with 1080p/8-bit resolution
l Input port 1supports HDMI &MHL2.0
l Support CEC &IR&HDCP
l Support ARC
l IR remote control
l Support 3D video format
l 5VDC Power Supply.
l Power Consumption：5watts
l Dimension (L×W×H):230x87x28mm
2
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Ports |
4xHDMI(female) |
|
Data transfer speed rate |
10.2Gbps |
|
Outputs ports |
2xHDMI outputs
1xOptical audio output
1xCoaxial audio output |
|
Resolution outputs |
Up to 4kx2k(3840x2160@30Hz) |
|
Transmission Distance |
15m over standard HDMI cable/26AWG |
|
Power consumption |
5w |
|
Dimension (L×W×H) |
230x87x28mmmm |
|
Net Weight |
510g |
