Product
FX-MX05
1 Feature
l Supports resolutions up to 1080p@60HZ,48-bit deep color, 4k@30HZ.

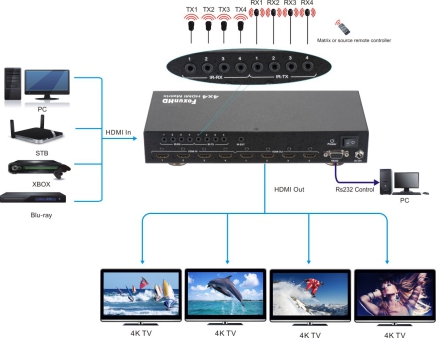

l Allows any source to be displayed on multiple displays at the same time.
l Allows any HDMI display to view any HDMI source at any time.
l Dolby TrueHD and DTS-HD master audio pass through HDMI output.
l Advanced EDID management for rapid integration of sources and displays.
l Multiple switching mode, push-in button, IR remote control, and RS-232 control.
l Easy installation with rack-mounting ears.
l Full 3D pass- through.
2 SPECIFICATIONS
|
Bandwidth |
2.97Gbps per color |
|
Video Input Connectors |
4xHDMI Type A, 19-pin, female, locking |
|
Video Output Connectors |
4xHDMI Type A, 19-pin, female, locking |
|
RS-232 serial port |
DB-9, female |
|
IR Input ports |
5x3.5mm stereo jack |
|
IR Output ports |
4x3.5mm stereo jack |
|
Rack-Mountable |
Rack ears included |
|
Dimensions(WxHxD) |
256MMx144MMx43MM, without feet |
|
Weight |
1.8 kg |
|
Operating Temperature |
-5 to +65℃(+23 to +149℉) |
|
Storage Temperature |
-4°F to 140°F (-20°C to 60°C) |
|
Power Supply |
12V/2A DC |
