Product

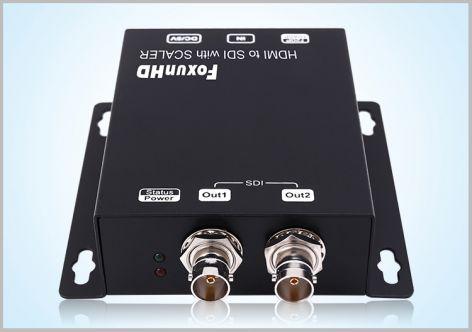

HSD2 HDMI to SDI Converter,upscaler to 720p or 1080p
FX-HSD2
1 Feature
l Upscaler to 720p or 1080p.
l Convert HDMI to SDI.
l Full HDMI support including embedded audio.

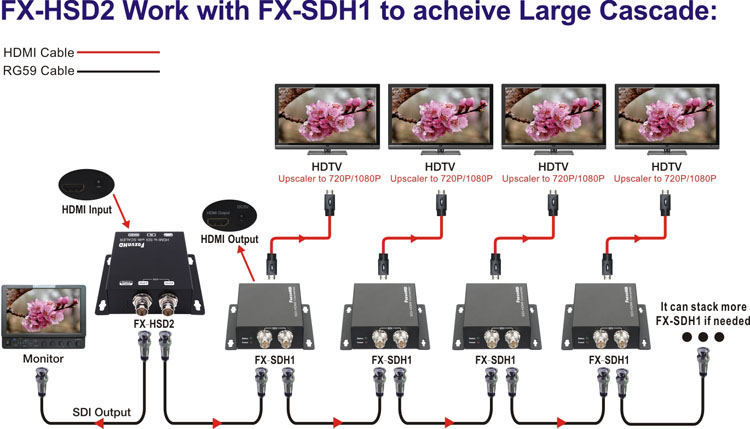

l Distributes 1 HDMI source to 2 SDI output simultaneously.
l Support 1080p (60Hz/59.94Hz/30Hz/29.97Hz/24Hz/23.98Hz).
l Uses 5V power.
l With mounting ears.
l Support 5V 1A.
l Dimension (L×W×H):95x95x29mm
l Net Weight:245g
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉)
|
|
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
|
Video Formats |
480i(60/59.94Hz)
720p(60/59.94/59Hz)
1080p(60/59.95Hz) 1080p(50Hz/60/59.94/30/29.97/24/23.98Hz) |
|
|
SDI |
720p@60Hz |
|
|
1080p@60Hz |
||
|
Input
|
|
|
|
Outputs
|
3G -SDI/HD-SDI/SDI
|
|
|
Standard Type A connector |
||
|
HDCP |
Compliant HDCP |
|
|
Power consumption |
2.5watts(Maximum) |
|
|
Dimension (L×W×H) |
95x95x29mm |
|
|
Net Weight |
245g |
|
