HC01 4K HDMI Audio Extractor
Loading...

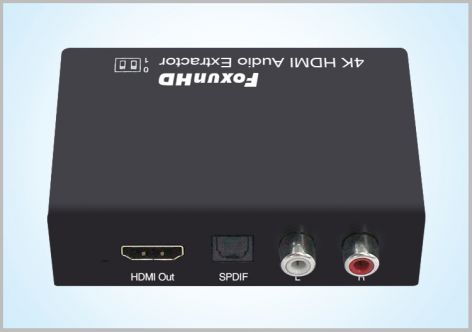

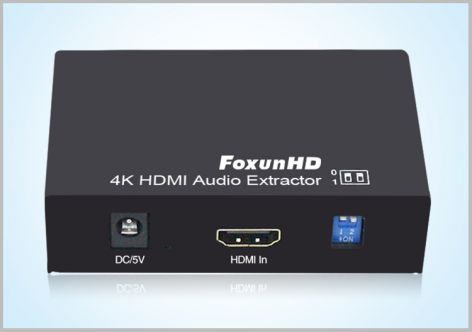

    • HC01 4K HDMI Audio Extractor
    • HC01 4K HDMI Audio Extractor
    • HC01 4K HDMI Audio Extractor

    HC01 4K HDMI Audio Extractor

    Item No.: FX-HC01
    Series: Product
    Category: HDMI Encoder

    Consult

      • HC01 4K HDMI Audio Extractor
      • HC01 4K HDMI Audio Extractor
      • HC01 4K HDMI Audio Extractor
      Products Details Wiring diagram Manual download

      Feature

      l Extract the digital HDMI audio signal from the HDMI input to 2 channel

      l analog stereo output or 5.1 channel Audio output

      l Support resolution up to 4k@30Hz

      l Supports deep color up to 36bit

      l Support 3D

      l Three Audio EDID Settings: 2.0CH/5.1CH/By pass

      l Supports Apple TV and various Blu-ray player, satellite receivers

      l Power consumption: 3W

      l Dimension (L×W×H):89.2x66.7x25mm

      l Net Weight:175g

      SPECIFICATIONS

      Operating Temperature Range

      -5 to +65℃(+23 to +149℉)

      Operating Humidity Range

      5 to 90%RH (No Condensation)

      Input Video Signal

      0.5-1.0 Volts P-P

      Input DDC Signal

      5 Volts P-P(TTL)

      Support Video format

      4kx2k/1080P/1080i/720P/576P/576i/480p/480i 3D video

      Support Video Color format

      Xv-YCC/deep color 36bit

      SupportAduio format

      DTS-HD Master Aduio/Dolby true-HD etc.

      Data transfer speed rate

      10.2Gbps

      Power consumption

      3Watts

      Dimension (L×W×H)

      89.2*66.7*25mm

      Net Weight

      175g

      Note: Specifications are subject to change without notice. Mass and dimensions are approximate

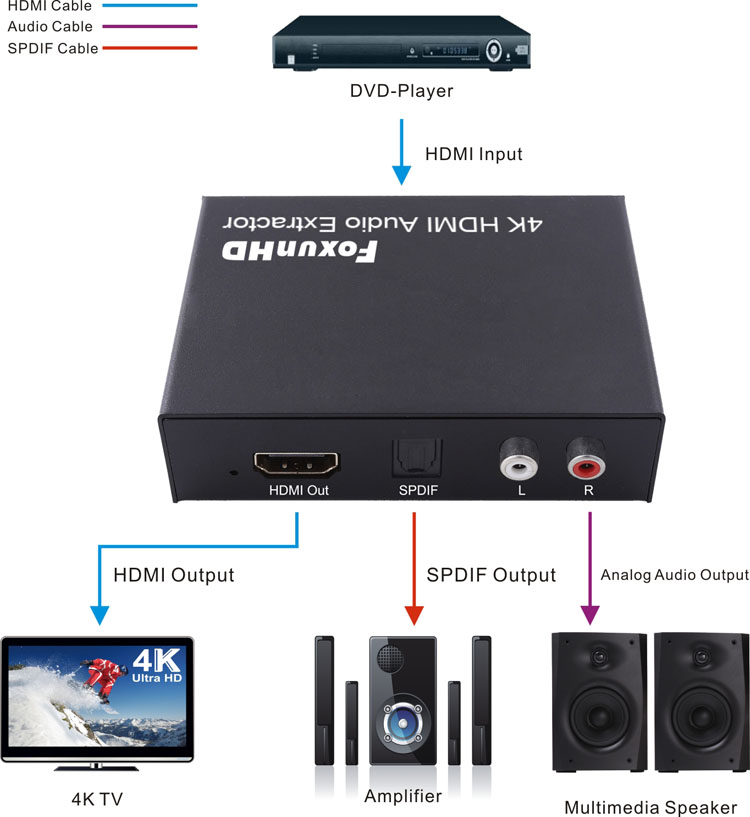

      Connecting and Operating

      1)Connect the HDMI signal source (Such as PS3, STB etc) into HDMI input of 4K HDMI Audio Extractor.

      2)Connect the HDMI display device (such as: HD-LCD, HD-DLP) into HDMI output of 4K HDMI Audio Extractor.

      3)Connect Optical audio cable or RCA audio cable to Amplifier.


      4)Connect DC 5V power to the 4K HDMI Audio Extractor.
